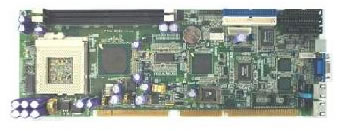

  PRM-8150 │  Intel 815E Socket 370 Full Size CPU Card www.szpk.cn

　产品简介

PRM-8150 is a PGA370 package Industrial CPU Card based on Intel’s 815E B-step and ICH2 chipset and is fully designed for harsh industrial environment. It features a Socket-370 processor connector. And it integrated onboard VGA and 2/1/0 Intel 82559/ER Base-T 10/100MHz Ethernet controllers.

　规格明细


System Architecture
PRM-8150 IPC
Intel CeleronTMII/Pentium III with 66/100/133MHz FSB
PCI V2.1 compliant
5.0V tolerant PCI and ISA interface

CPU Supported
Support 66/100/133MHz system bus
Support Intel Pentium Tualatin FC-PGA2 1.13/1.20/1.26GHz （133MHz ）or higher Support Intel Pentium (Coppermine) FC-PGA 533/600/667/733/800/866/933M/ 1GHz (133MHz )
Support Intel Pentium (Coppermine) FC-PGA 500/550/600/650/700/750/800 /850M/ 1G/1.1GHz (100MHz)
Support Intel Celeron FC-PGA 533/566/600/633/667/700/733MHz (66MHz)
Support Intel Celeron FC-PGA 1GHz or higher (100MHz)

Chipset
Intel 815E B-Step +ICH2 Chipset
100/133MHz FSB supported
PCI V2.1 compliant
Optimized SDRAM supported

Main Memory
l Support Dual DIMM up to 512MB (Max.)

BIOS
Award PCI BIOS
Plug & Play supported
Advanced Power Management supported
Temperature/Voltage check
Over 80 Temperature Shutdown (Operations can be set using BIOS)
2M/4M bit flash ROM
Hot swap supported
Support Watchdog (system rest) Operations can be set using BIOS
Support DOC2000

VGA
Integrated graphics acceleration controller that support 3D/2D enhancements

On Board LAN (Optional)
2/1/0 Intel 82559/ER 10/100 Base -T Ethernet controllers (please refer to section 3.3)
Support full duplex
Compliant with PCI V2.1, IEEE802.3, IEEE802.3U
Driver supported: DOS /Windows, Windows 98/2000, Windows NT4.0 or Linux

On Board I/O
Winbond W83627 LPC controller
Bi-directional PIO port, support EPP/ECP
Built-in FDC support 3.5” 720K/1.44MB/(Rear I/O only)
On chip keyboard/ mouse controller, 6 pin mini DIN for both PS /2 mouse and keyboard (Front I/O & Rear I/O)
On board buzzer
On board IrDA Connector
Dual IDE (Support UltraDMA/33/66/100MB/Sec)
Dual USB1.1 ports

On Board RTC
High precision real time clock/calendar with battery backup

On Board DOC2000
On board reserved socket for DOC2000

System Monitor
Winbond W83627HF system monitor controller
System voltage (Vcore, +3.3v, +5v, +12v, Vtt)
Fan speed (For CPU)
Two temperature controllers (for CPU and for system)

Watchdog Timer (software)
1,2,4…64 seconds time-out intervals
Operations can be set using BIOS
Maximum timeout interval: 64 seconds

Dimensions
IPC size based, 338mm (L) x 122 mm (W)

Power Requirements
+5V, 10A(Max.)
+12V, 3A (Max.)

Environments
Operating temperatures: 0?C to 60?C
Storage temperatures: -20?C to 80?C
Relative humidity: 10% to 90% (Non-condensing)

Operating system support
Windows 98/Windows 2000/Windows NT 4.0, Linux
